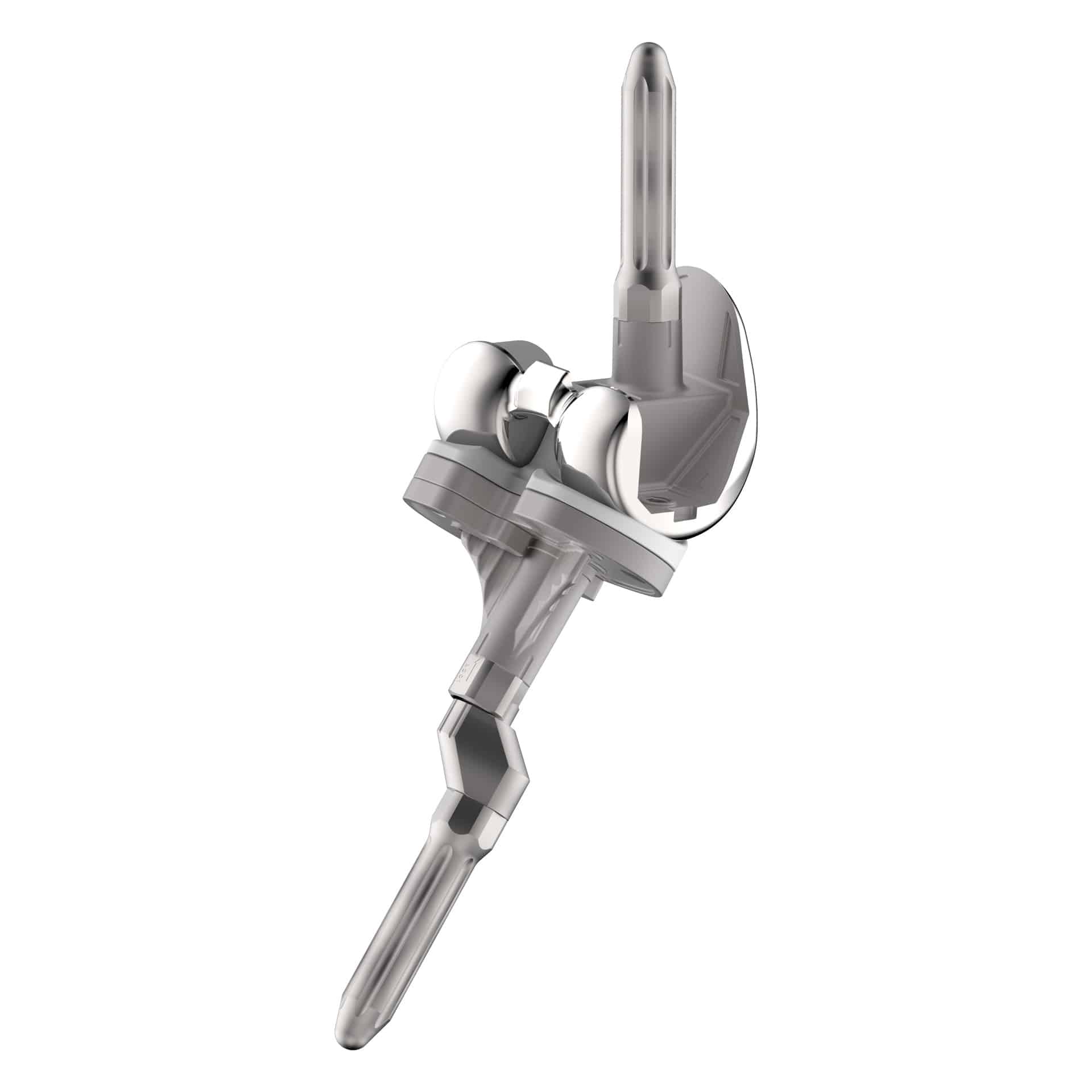

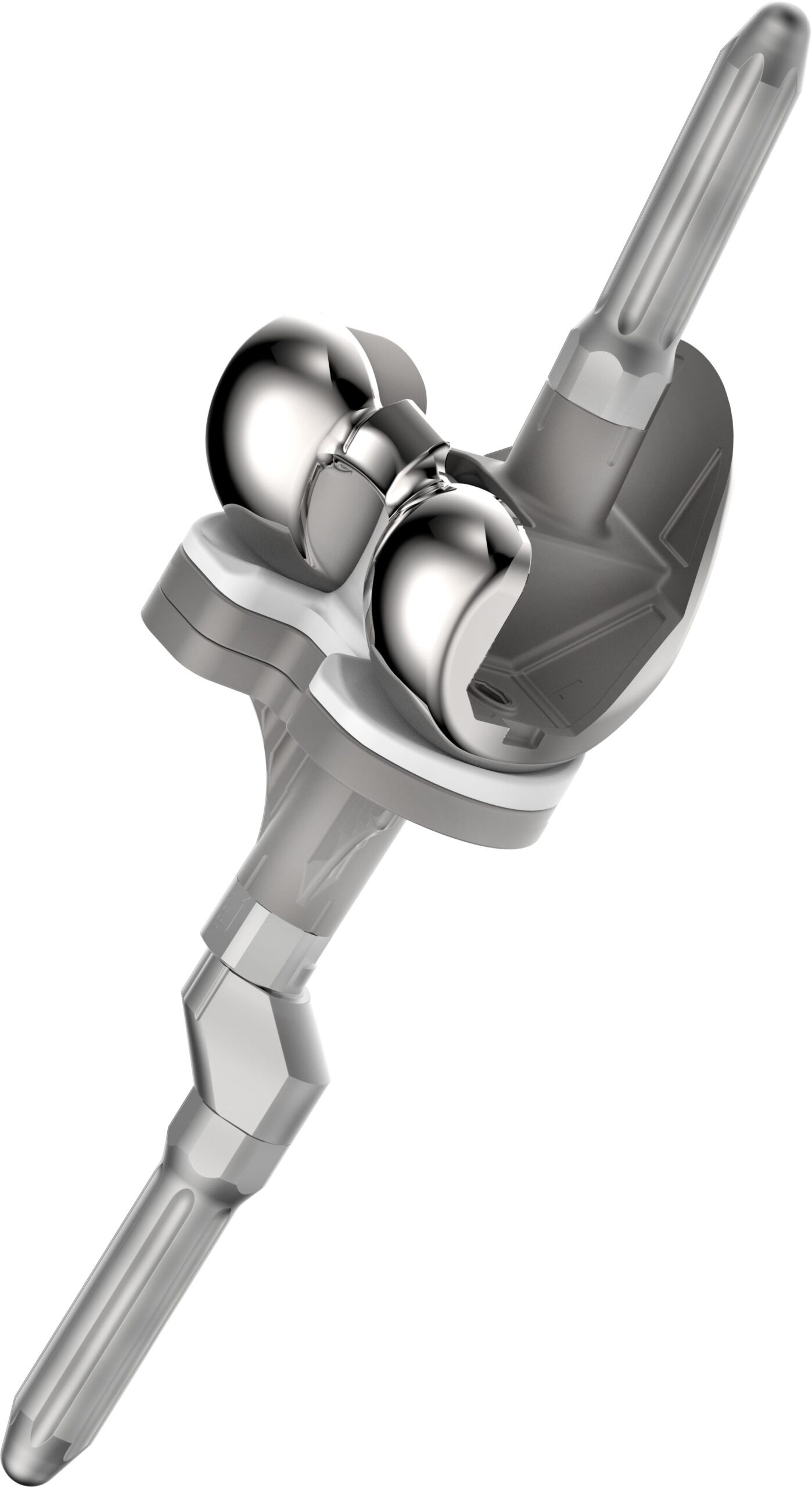

Lospa Revision System

Maintains Lospa Primary Knee System's Anatomical Features

Stability

Constrained motion
Increased AP stability

Modularity

Stem extension available
Augmentation

Longevity

Stabilized concave tibial post
Secured insert locking rod

Compatibility

Modular Femoral Component - Primary Tibial PS Insert
Primary Tibial PS/CR Insert - Modular Tibial Baseplate

lospa knee

Stem Housing Angle: 6°

The modular femoral component has a stem housing that is tilted 6° laterally.

lospa knee

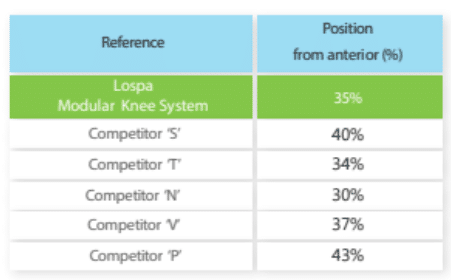

Stem Housing Position: 35% from Anterior

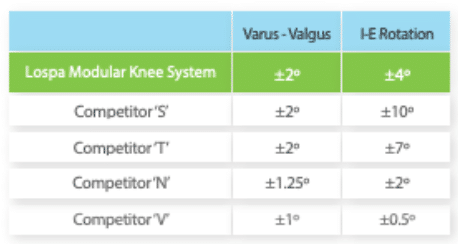

Constrained Motion

2° at knee extension

4° at 75° flexion

Tibial Component

Concaved Post Design

The posterior part of the post is concavely curved. After cam-post engagement at 75 degrees of flexion, the cam travels down the post. This reduces the risk of the dislocation and allows for deep flexion with joint stability.

concaved post design tibial

Concaved shape

Heightened Post

For better stability during the entire knee motion, the post height is designed higher than the Lospa Primary Knee System.

Augment

Lospa Modular Knee System has two types of the Augment: Block and Choren Pad

Block

Complementing bone deficits
Thickness: 5, 10, 15mm
Bolt/Cement fixation

femoral distal block

Femoral Distal Block

femoral posterior block

Femoral POsterior Block

tibial half block

Tibial Half Block

Choren Pad (Correct Height Orientation Renovation)

Correcting unbalanced knee joint
Thickness: 2, 3mm
Cement fixation

femoral distal pad

Femoral Distal Pad

Femoral posterior pad

Femoral Posterior Pad

tibial half pad

Tibial Half Pad

AP Stability with More Conforming Articular Surface

Baseplate - Insert Locking

Full peripheral capture which reduces micro motion and a locking rod that reinforces fixation

hole and cap

Hole & Cap

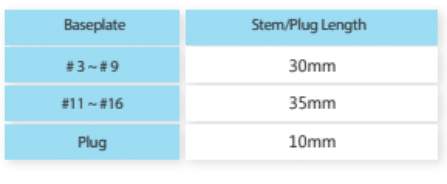

Stem Length

stem length

stem length

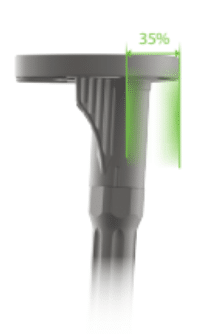

Stem Housing Position: 35% from Anterior
